Below you will find a wide variety of 12 and 24 Volt Compressors and Pumps we carry.
These compressors are workhorses that go in dirty, hot or cold environments, and in applications with high pressure and high cycle requirements. They are the technology of choice for Original Equipment Manufacturers (OEMs) in many mobile, industrial, and applications including air suspension, central tire inflation system, dry sprinkler systems.
If you do not see a type or model you need just ask - chances are we have it, can get it, or can offer a similar replacement model.
NOTE THERE ARE lead times associated with most of these - if needing ASAP please check availability by sending us an email or give us a call or text - 214-529-9656
Benefits of Thomas Pumps and Compressors
The straight up/straight down piston motion is tailor-made for delivering high-pressure, high-volume airflow; good for stopping and restarting against back pressure. The oil-less design eliminates contamination concerns.
Features that only Thomas Articulated Piston Technology can provide:
Can run continuously at high pressures (175 psig/ 12 bar)
Can restart at high pressures (175 psig/ 12 bar )
Can operate in very harsh working environments (dirty, dusty, hot, cold)
Our Robust TASKAIR Articulated piston pumps and compressors can provide a performance and quality of design that's unparalleled on the market. On top of the performance Thomas’ units are more tolerant to contamination in intake air and can bolt to virtually any “off the shelf” motor with slight modifications to the shaft and motor mount face. Pump design is customizable also for motor protection, with optional DC enclosed motor/housing design.
Articulated Piston Pumps and Compressors for a Variety of OEM Applications
The Thomas TASKAIR product series are most often used in medium and heavy duty air suspension systems that require high air flow and long run times, however they are selected when an application demands exceed typical piston pump technology limitations. They can be found in leading industrial devices and systems.
Key Applications:
Air Suspension Air Doors Air Horns Air Brakes Air Clutches Fuel Systems Air Seats Air suspension
Central tire inflation Defense equipment manufacturing Fire suppression systems Kneeler suspension systems
Load leveling air suspension systems Pneumatic doors Sheel flange lubrication

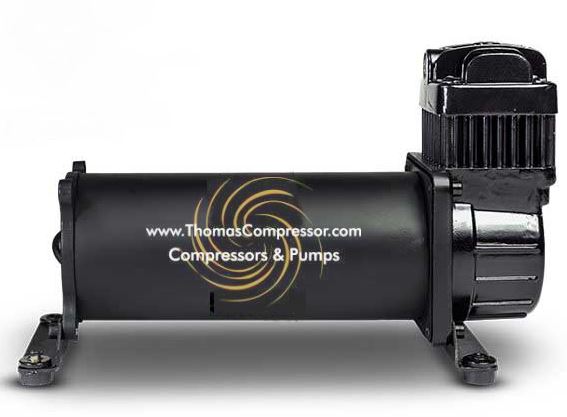

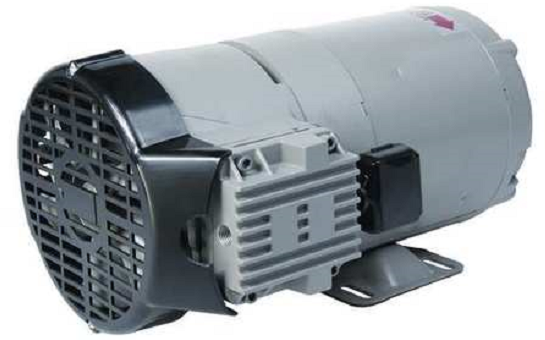

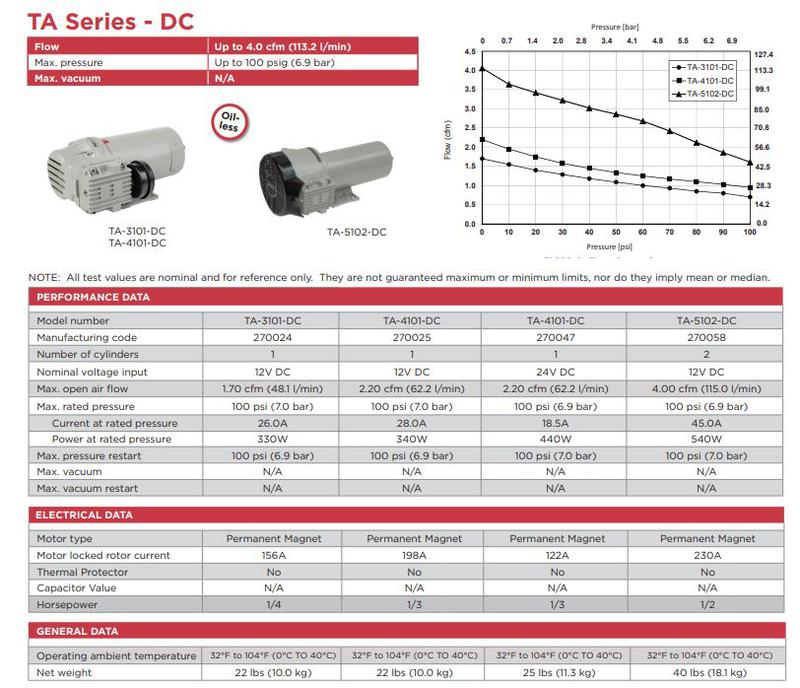

TA - 4101 DC 12 V 270025, motor pictured to the left - used in Air ride suspensions, air brakes for RV's/Trucks/ etc.
Thomas Oil-less Articulating Piston Compressor, 12v
Brand:Thomas Flow Rate (CFM):2.2 Flow Rate (LPM):62 Max Pressure (PSIG):100
Max Pressure (bar):6.9 Horsepower (60 Hz):.33 Kilowatts (60 Hz):.25 Voltage (DC):12
Item Length (In):11.54 Item Width (In):5.83 Item Height (In):8.61 Item Length (mm):293
Item Width (mm):148 Item Height (mm):219 Net Weight (Lbs):22 Net Weight (Kg):10
NEW Replacement PUMP $1,895.99
TA-3101-DC (270024)
Thomas Oil-less Articulating Piston Compressor
Brand:Thomas
Flow Rate (CFM):1.7 Flow Rate (LPM):48 Max Pressure (PSIG):100 Max Pressure (bar):6.9
Horsepower (60 Hz):.25 Kilowatts (60 Hz):.19 Voltage (DC):12 Item Length (In):11.54
Item Width (In):5.83 Item Height (In):8.61 Item Length (mm):293 Item Width (mm):148
Item Height (mm):219 Net Weight (Lbs):22 Net Weight (Kg):10 (12V DC) Articulated Piston
TA-4101-DC (270047) (24V DC)
Thomas Oil-less Articulating Piston Compressor
Brand:Thomas Flow Rate (CFM):2.2 Flow Rate (LPM):62 Max Pressure (PSIG):100
Max Pressure (bar):6.9 Horsepower (60 Hz):.33 Kilowatts (60 Hz):.25 Voltage (DC):24
Item Length (In):11.54 Item Width (In):5.83 Item Height (In):8.61 Item Length (mm):293
Item Width (mm):148 Item Height (mm):219 Net Weight (Lbs):25 Net Weight (Kg):11.3
TA-5102-DC (270058) (12V DC)
Thomas Oil-less Articulating Piston Compressor
Brand:Thomas Flow Rate (CFM):4.06 Flow Rate (LPM):115 Max Pressure (PSIG):100
Max Pressure (bar):6.9 Horsepower (60 Hz):.5 Kilowatts (60 Hz):.38 Voltage (DC):12
Item Length (In):15.32 Item Width (In):9.96 Item Height (In):6.81 Item Length (mm):389
Item Width (mm):253 Item Height (mm):173 Net Weight (Lbs):40 Net Weight (Kg):18.1
Buy this now for $2,959.99

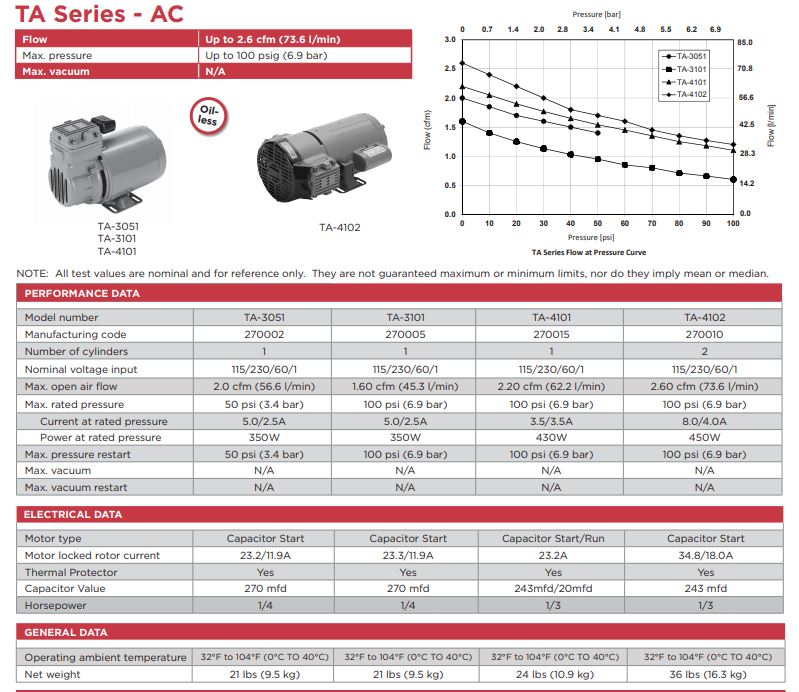

These are also available in 115 and 230 AC Voltage
TA-3051 (270002)
(115/230/60/1)
TA-3101 (270005)
(115/230/60/1)
TA-4101 (270015)
(115/230/60/1)
TA-4102 (270010)
(115/230/60/1)
TA-4172 (270072)
(115/230/60/1)
TA-5102 (270011)
(115/230/60/1)
TA-5102 (270040)
(110/220-240/50/1)
TA-5102 (270043)
(190/380/50/3 & 208-230/460/60/3)
TA-5172 (270073)
(115/230/60/1)
TA-5172 (270078)
(110/220-240/50/1)
TA-6102 (270012)
(115/230/60/1)
TA-6102 (270044)
(190/380/50/3 & 208-230/460/60/3)
TA-6172 (270080)
(115/230/60/1)
TA-6172 (270082)
190/380/50/3 & 208-230/460/60/3)
TA-7102 (270045)
(115/230/60/1)

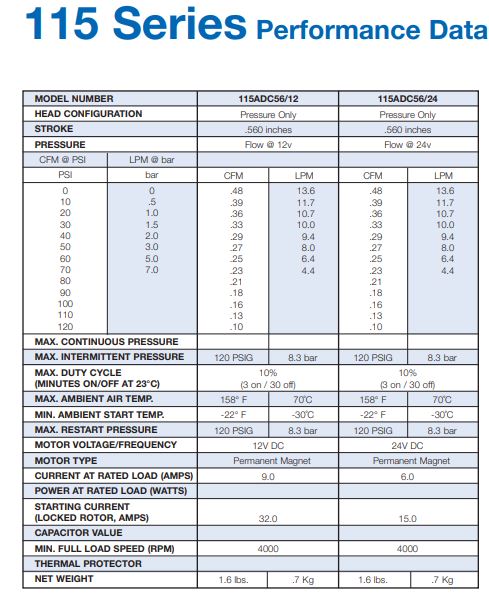

Thomas MODEL 115 Series
115ADC56/12 Discontinued - Other models available to match - Call or text
115ADC56/24 Discontinued - Other models available to match - Call or text
Typically Used in : Air Suspension
Air Doors
Air Horns
Air Brakes
Air Clutches
Fuel Systems
Air Seats
FEATURES
• Oil-less, non-lube piston and cylinder
• Stainless steel valves
• Lightweight, die-cast aluminum components
• Hard-coated aluminum cylinder for maximum piston wear life
• Balanced for smooth, low vibration operation
• Long-life, high performance PTFE compound piston ring
• Built-in inlet filter
• Dust and moisture resistant
• Permanently lubricated motor shaft and connecting rod bearings

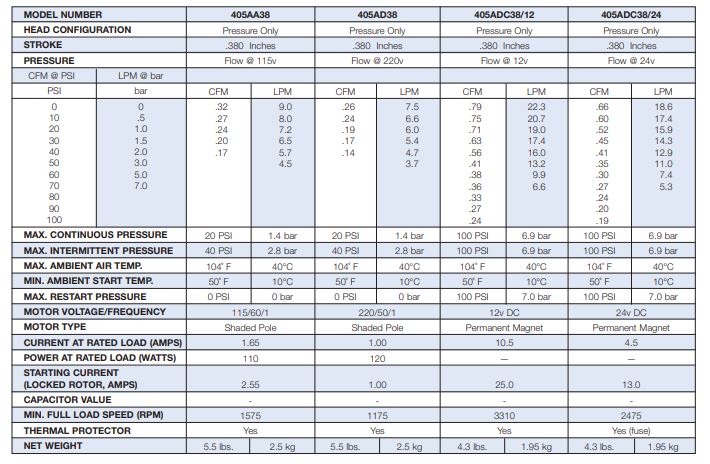

Thomas Wob-L 405 Series
MODELS
405AA38 115V version Buy this now for $489.99
405AD38 220V version Buy this now for $499.99
405ADC38/12 Buy this now for $494.99
405ADC38/24 Buy this now for $559.99
Single cylinder
Oil-less, non-lube piston and cylinder
Permanently lubricated bearings
Stainless steel valves
Aluminum valve plates
Lightweight die cast aluminum components
Typically used in: Oxygen Concentrators (Portable DC)
Business Machines
Copiers
Air Suspension
Air Doors
Air Horns
Air Brakes
Air Clutches
Fuel Systems
Floor Cleaners
Plastic Welding
Lift Chairs
Water Treatment
Foam Field Markers
Fertilizer Mixing

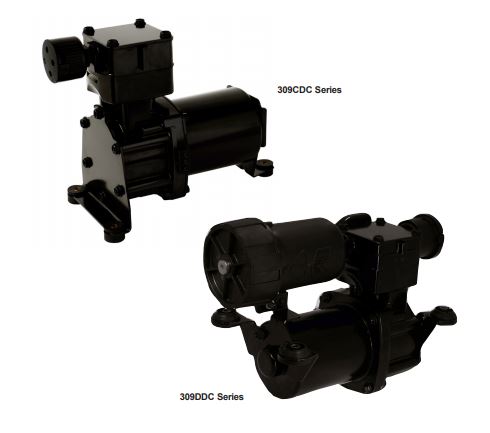

NEW Thomas 309 / 319 12 Volt MODELS
**These replace the discontinued 315CDC, 337, 319, 010, & 327 models**
24 VOLT versions available as a *Special Order Only* item - contact us for quote.

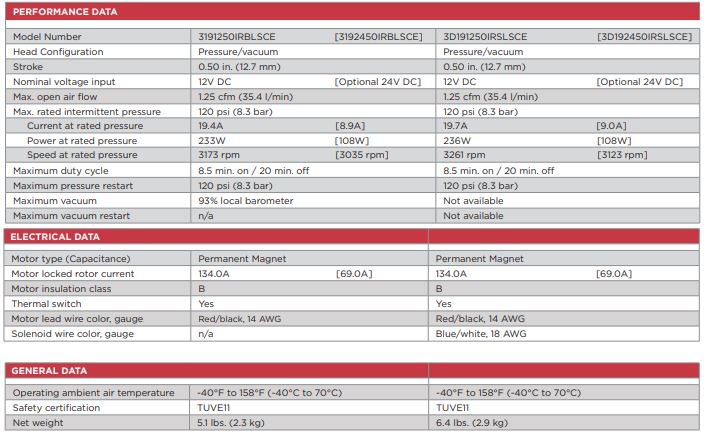

3191250IRBLSCE Model numbers vary but are all identical
(12V DC)
3D191250IRSLSCE w/ Dryer - lead times apply
(12V DC) w/ Dryer - lead times apply

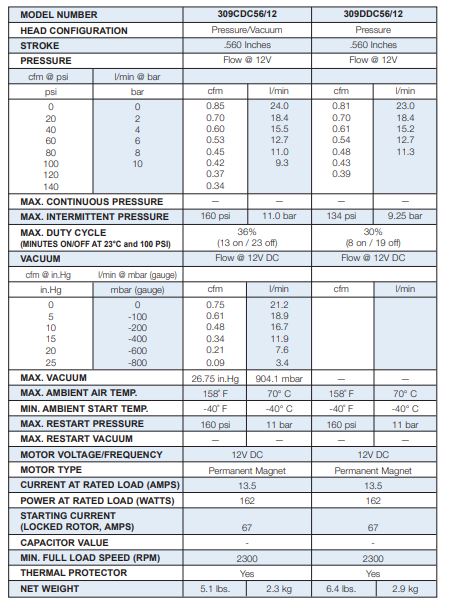

309CDC56/12 / 3191250RLBSCE Buy this now for $559.99
309DDC56/12 / 3D191250IRSLSCE Buy this now for $789.99
FEATURES
• Oil-less
• Die cast aluminum components
• Steel mounting brackets
with vibration isolators
• Stainless steel inlet valve
• PTFE piston ring
• Thermally protected motor
• Intermittent duty only
• All wetted aluminum parts
treated for corrosion
protection from moisture
• Radiated Emissions Suppression
Typically Used in : Air Suspension
Air Doors
Air Horns
Air Brakes
Air Clutches
Fuel Systems

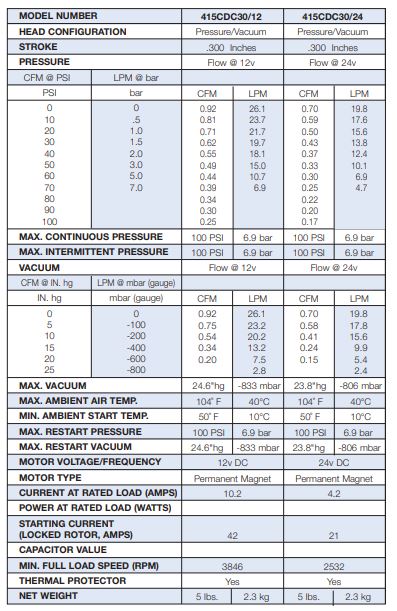

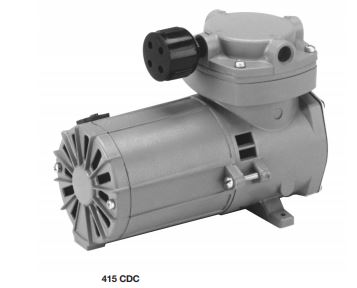

NEW Thomas 415 Series / Models
415CDC30/12 Buy this now for $499.99
415CDC30/24 Buy this now for $599.99
Designed for heavy-duty applications
Oil-less, non-lubricated piston and cylinder
Permanently lubricated bearings
Stainless steel valves
Aluminum valve plates
Lightweight die cast aluminum components
Long-life, high performance piston cup
Thin wall, hard coated aluminum
cylinder for maximum heat transfer
Balanced for smooth, low vibration operation
Typically used in :
Oxygen Concentrators (portable DC)
Business Machines
Copiers
Air Suspension
Air Doors
Air Horns
Air Brakes
Air Clutches
Fuel Systems
Floor Cleaners
Plastic Welding
Lift Chairs
Water Treatment
Foam Field Markers
Fertilizer Mixing
NEW Thomas 215 Series Models
215ADC38/12 CALL FOR Availability and Price
215ADC38/24
FEATURES
• Oil-less, non-lube piston and cylinder
• Stainless steel valves
• Lightweight, die-cast aluminum components
• Hard-coated aluminum cylinder
for maximum piston wear life
• Balanced for smooth, low vibration operation
• Long-life, high performance PTFE
compound piston ring
• Inlet unloader or pressure restart
• Built-in inlet filter
• Dust and moisture resistant
• Permanently lubricated motor
shaft and connecting rod bearings
Typically used in:
Air Suspension
Air Doors
Air Horns
Air Brakes
Air Clutches
Fuel Systems
Air Seats

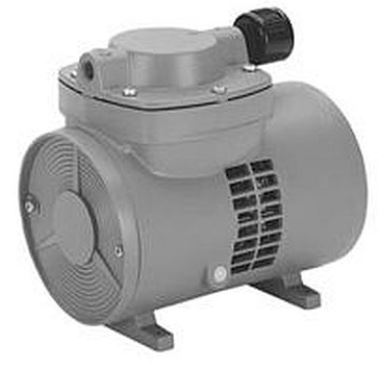

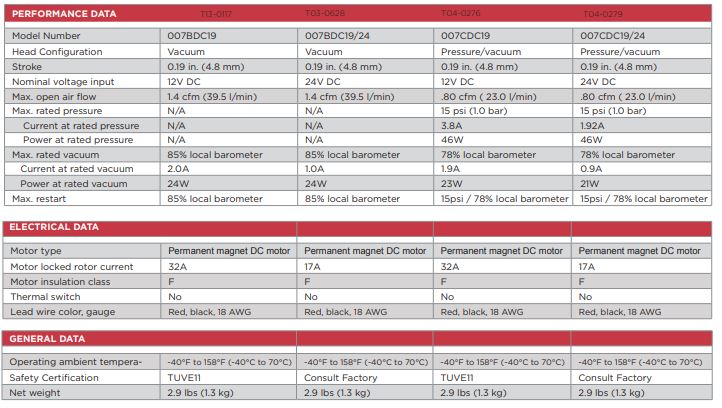

NEW 007 Model Diaphragm pumps & compressors
007 Series
Capacity up to 0.65 cfm / 18.4 l/min These typically have lead times of 4-6 weeks.
Pressure to 25 psi / 1.7 bar
007BDC19 12V BUY it now $519.99
For 24V DC contact us
007CDC19 12V Call for Availability
For 24V DC contact us
Single cylinder
Oil-less operation
Quiet, low pulsating head design
Permanently lubricated bearings
Reinforced plastic head and
connecting rod assemblies
Balanced for smooth, low
vibration operation
Typically used in:
Nebulizers
Aspirators
Automotive Exhaust Gas Analyzers
Portable Medical Emergency
Suction Equipment (DC)
Drink Dispensing
Air Brushing
De-Soldering Equipment
Cake Decorating
Air & Gas Samplers
Particle Counters
Food Dispensing
Vacuum Frames
Computer Plotters/Printers

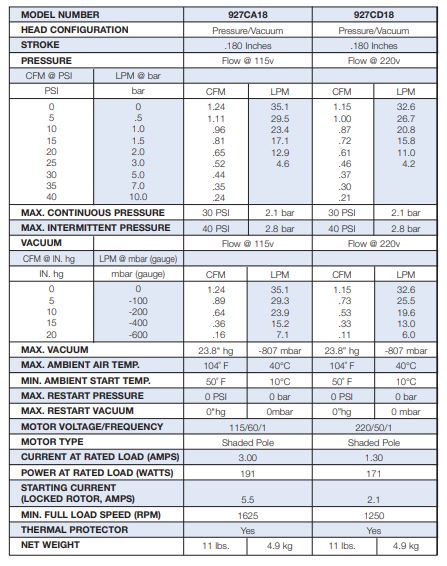

NEW Thomas 927 Series
MODELS
927CA18 Buy this now for $495.99
927CD18 Buy this now for $499.99
FEATURES
• Oil-less operation
• Permanently lubricated bearings
• Field service capability
• Stainless steel valves and aluminum valve plate
• Lightweight die cast aluminum head
and diaphragm hold down plate
• Long-life diaphragm
• Inlet filter
• Balanced for smooth,
low vibration operation
• 6 ft. grounded cord and plug
• 115 volt UL recognized
motor and thermal protector
• Service Kit SK927
Typically used in:
Aspirators
Nebulizers
Vacuum Frames
Sewage Treatment
Air Brushing
Powder Spraying (Printing Machines)
Stack Gas Samplers
Water Sampling
Fluid Dispensing
Cake Decorating

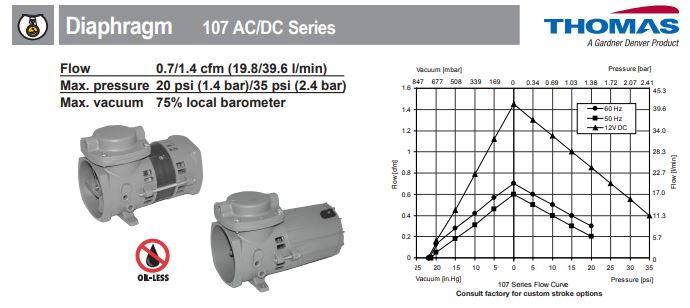

NEW Thomas 107 Series Diaphragm pumps & compressors
Models
107CDC20 Buy this now for $495.99
107CCD18 Buy this now for $517.99
107CAB18 Buy this now for $469.99
Capacity up to 1.4 cfm / 39.6 l/min
Vacuum to 22.0 in.Hg / -750 mbar
Pressure to 35 psi / 2.4 bar
FEATURES (BENEFITS)
• Oil-less operation (Clean air stream, less maintenance)
• Permanently lubricated bearings (Optimum life)
• Stainless steel valves (Optimum life, consistent
performance, corrosion resistance)
• Die-cast aluminum components
(Strong, lightweight, durable)
• Dynamically balanced (Low operating vibration)
• Durable diaphragm design (Optimum life)
• Field service capability
(Maximum return on investment)
• Thermally protected motor
(Fail-safe operation) AC Series
• Designed and tested per Agency
standards (Fail-safe operation)
• Inlet filter/exhaust muffler (Quiet, clean operation)
• RoHS compliant AC Voltage (Green, eco-friendly)

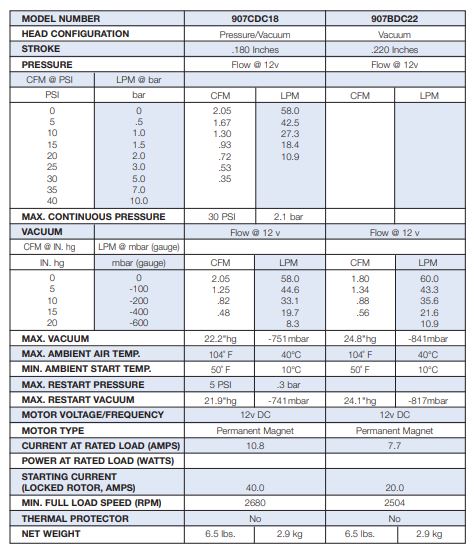

NEW Thomas 907 Series Diaphragm pumps & compressors
Models
907CDC18 Buy this now for $457.88
Capacity up to 2.1 cfm / 58.1 l/min
Vacuum to 22.2 in.Hg / -752 mbar
Oil-less operation
Permanently lubricated bearings
Stainless steel valves and lapped aluminum valve plates
Lightweight die cast aluminum heads
and diaphragm hold down plates
Long-life diaphragm
Inlet filter
Balanced for smooth, low vibration operation
Typically used in :
Aspirators
Nebulizers
Vacuum Frames
Sewage Treatment
Air Brushing
Powder Spraying (Printing Machines)
Emergency Vehicles (Suction)
Computer Tape Drives
Foam Markers
Fertilizer Mixing
DC COMPRESSORS FOR AQUATIC AND HYDROPONIC APPLICATIONS
The 12V compressor range is used mainly for vehicle operated applications such as the transportation of fish. Delivering a high pressure to its source, they efficiently absorb organic matters and chemicals and get rid of odors.
The ACO 003 & ACO007 compressors are large in
output and high in pressure.
Both Dual operation of air compressor and vacuum pump.
Max Flow: 2.12 cubic feet per minute
Max Pressure: 0.06 bar
Weight: 1.5 kilograms
Dimensions (LxWxH): 7.68" x 3.58" x 5.04"
Power: 25W
Outlet Diameter: 0.01"
Manifold Supplied: 6 way plastic
ACO 003 BUY THIS NOW for $172.99
Max Flow: 4.94 cubic feet per minute
Max Pressure: 0.10 bar
Weight: 4.2 kilograms
Dimensions (LxWxH): 8.58" x 12.52" x 7.13"
Power: 140W
Outlet Diameter: 0.24"
Manifold Supplied: 16 way plastic
ACO007 BUY THIS NOW for $296.99
GSE BRAND TWIN Cylinder Rocking Piston Brushless DC Compressor
Twin-headed rocking piston
Open flow - 106 LPM ( 3.7 CFM )
Max pressure 3.5 Bar ( 51 PSI )
*** These must have external cooling fan protection * NOT included.
12 Volts / DC
Permanently lubricated bearings
Oil-less, non-lubricated cup and cylinder
Long-life cup design
Thin wall cylinder for good heat transfer
Field service ability Recoverable thermally protected motor
Description Standard
Rated Voltage(VDC) 12±1.2
Speed(rpm) 1850
Free Flow Rate (LPM) 106 Max
Rated Pressure(Bar) 1.4 Max
Flow Rate(LPM) 75
Current(A) 27
Power(W) 330
Motor BLDC
Insulation Class B
Weight(Kg) 5.8
Sound Level(dB(A)) ≤60
AfterMarket Quick & Effortless AIR Power
Heavy Duty and available in 12 VDC and 24 VDC
Available in 3 Configurations Below - 325 series, 425 series, and 625 series.
Perfect for a multitude of air applications: air suspension, air horns, inflatables, flat tires, ON Board and Demand AIR, & powering small air tools.
All compressors have an oil-less design, sealed bearings, PTFE piston ring, copper wire wound permanent magnet motor, a hard anodized aluminum cylinder sleeve and compressor kits are equipped with a check valve to prevent possible motor damage.
Universal Applications - can be mounted to fit on any piece of equipment.

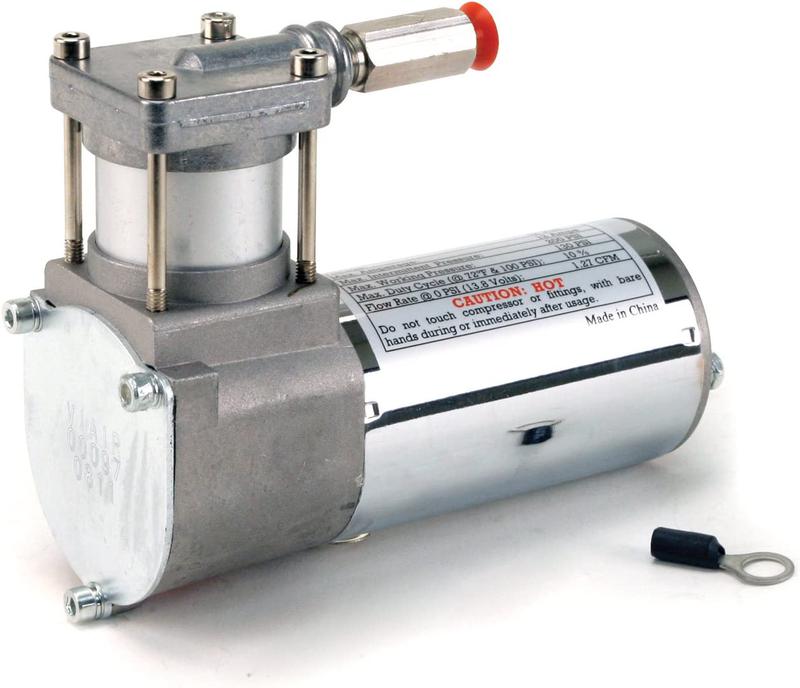

325 SERIES - these 1/4 HP air compressors
have a 33% duty cycle (20 minutes @ 100 psi)
and are offered in both 12 and 24 VDC.
325 Series Features & Benefits
Mountable in any orientation
33% Duty Cycle (20 minutes @ 100 PSI)
150 PSI Max Working Pressure
1.2 SCFM
158°F Max /-40°F Ambient Temperature Range
COMPRESSOR SPECIFICS:
Compressor Size: 8.7" x 4" x 6.2" (LxWxH)
221 mm x 102 mm x 158 mm
Compressor Weight: 5.5 lbs [2.5 kg]
12 Volt Chrome - $325.99
12 Volt Matte Black - $325.99
24 Volt Chrome - $334.99

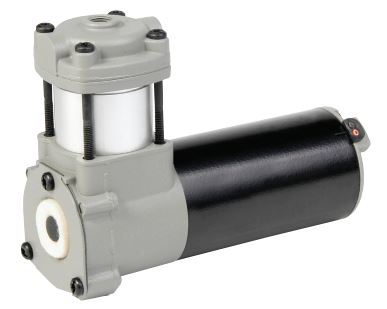

425 SERIES - these 1/4 HP air compressors
have a 50% duty cycle (30 minutes on /
30 minutes off) and are offered 12 VDC Only.
Mountable in any orientation
50% Duty Cycle (30 minutes on / 30 minutes off)
200 PSI Max Working Pressure
1.75 SCFM
158°F Max /-40°F Ambient Temperature Range
COMPRESSOR SPECIFICS:
Compressor Size: 10.8" x 3.9" x 6.6" (LxWxH)
[275 mm x 100 mm x 167 mm]
Compressor Weight: 10.26 lbs [4.65 kg]
12 Volt Chrome - $375.99
12 Volt Matte Black - $375.99

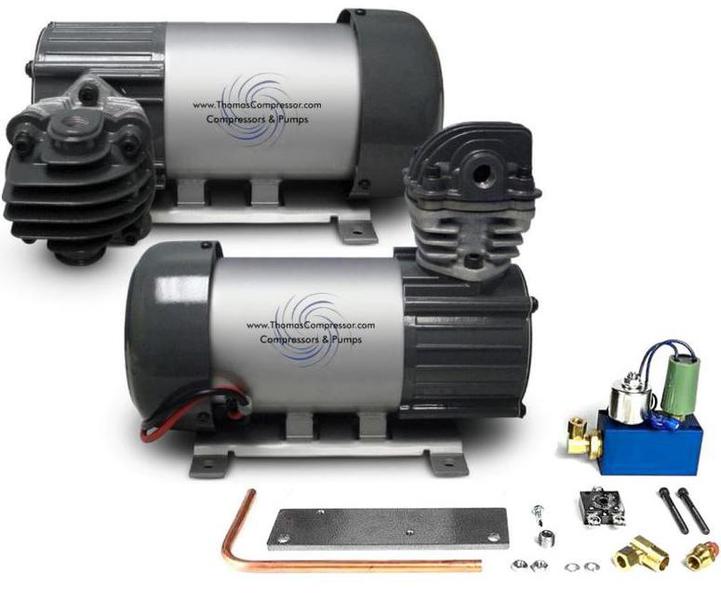

625 SERIES - Our 3/4 HP air compressors
have a 100% duty cycle (1 Hour @ 100 psi) and
are offered in two pump head configurations:
vertical (available in 12 and 24 VDC) & horizontal (12 VDC).

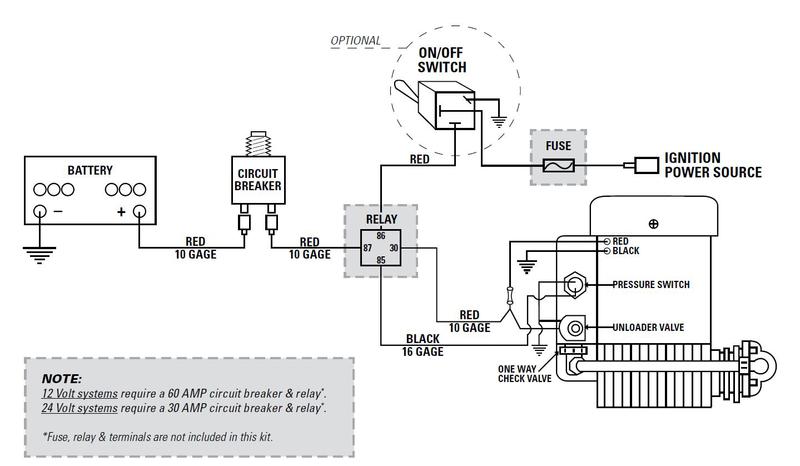

These Air compressors come complete
with an unloader block assembly and
pre-built wiring harnesses, for the ultimate
ease of installation. The unloader block is required
for the 625 series air compressor when used
with an air tank. If you do not plan on using it with
an AIR Tank - we can provide them solo.
** Tanks are available as well in a variety of sizes - from .5 to 5+ Gallon.
COMPRESSOR SPECIFICS:
150 PSI Max Working Pressure, Draws 22.5 AMPs
3.1 SCFM
11.5″ x 6″ x 9.5″, 17.7 lbs
158°F Max / -40°F Min Ambient Temperature
Head Configuration: Horizontal
Compressor Size: (LxWxH) : 11.5" x 9.5" x 6" [293 mm x 242 mm x 153 mm]
Head Configuration: Vertical
Compressor Size: (LxWxH) 11.5" x 6" x 9.5" [293 mm x 153 mm x 242 mm]
Compressor Weight: 18.5 lbs [8.4 kg]
12 Volt Horizontal Head in Silver - $719.99
12 Volt Vertical Head in Silver - $787.99
24 Volt Vertical Head in Silver - $829.99

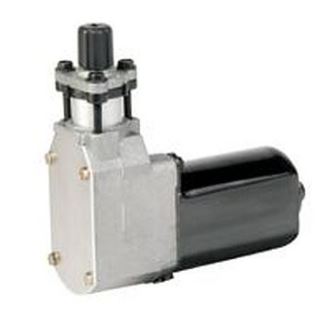

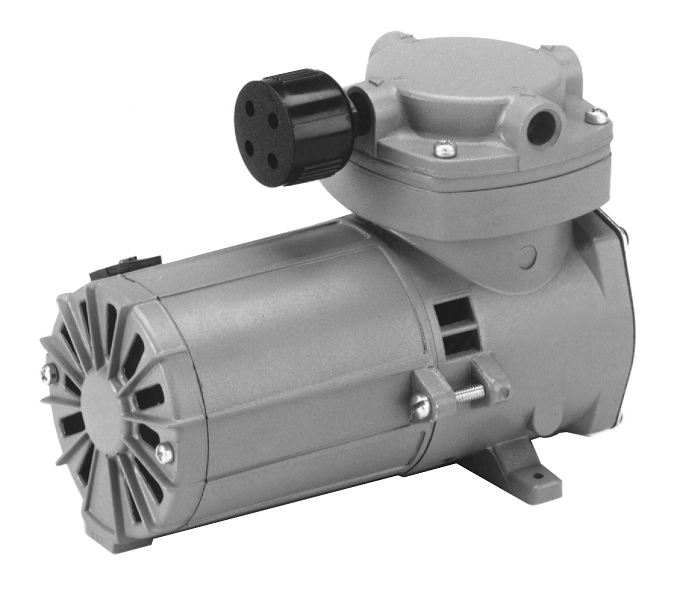

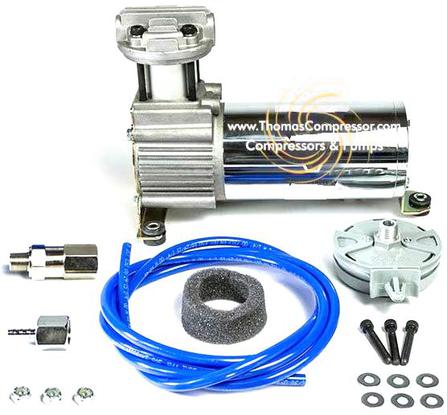

12 & 24 Volt Aftermarket Replacement Pumps for 115ADC models, 215, and 235 ADC Models.
This listing is for a Brand NEW Replacement for the THOMAS Compressor models.
and is NOT for a Thomas model but a replacement for that one.
These are an aftermarket pump used in a variety of applications such as:
Air Suspension
Air Doors
Air Horns
Air Brakes
Air Clutches
Fuel Systems
Air Seats
RV on board Air
OFF Road on Board Air Systems
And any other set up requiring 24v AIR.

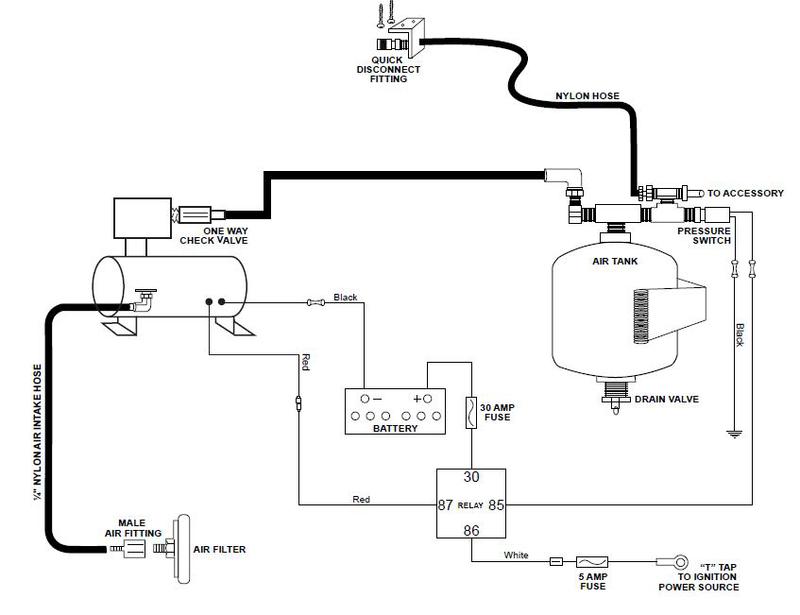

Can be used in conjunction with an air tank or without * applications vary that require tanks*
Spec comparison Thomas VS DIY Model :
Original Thomas Specs:
MODEL NUMBER 215ADC38/24
HEAD CONFIGURATION - Pressure Only
STROKE .380 "
MAX. DUTY CYCLE 10% 3 on / 30 off
(MINUTES ON/OFF AT 23°C)
Flow Rate (CFM): 0.97
Flow Rate (LPM): 27
Max Pressure (PSIG): 120
Max Pressure (bar): 8.3
MOTOR VOLTAGE/FREQUENCY 24v DC
MOTOR TYPE - Permanent Magnet
CURRENT AT RATED LOAD (AMPS) 7.5
STARTING CURRENT
(LOCKED ROTOR, AMPS) 26.0
MIN. FULL LOAD SPEED (RPM) 3400
NET WEIGHT 3 lbs
Dimensions - 6.18" L x 4.46" T x 2.10 " W
1/8-27 NPT Exhaust Port / Felt Filter Intake
Pump Replacement Specs:
Power Source
Electric
ElectricItem Dimensions LxWxH6.75 x 4.25 x 2.35 inches
6.75 x 4.25 x 2.35 inchesCapacity1 Gallons
1 GallonsAbout this item
Motor Voltage: 24 Volts
Max. Current Consumption: 5 Amps
Motor Type: Permanent Magnetic
Max. Working Pressure: 120 PSI
Max. Duty Cycle (@ 72°F & 100 PSI): 9%
Max. Ambient Temperature: 158°F
Min. Ambient Temperature: -40°F
Dimensions: 5.4”L x 3.1”W x 4.6H”
Net Weight: 2.5 Lbs.
24 Volt - 120 PSI Max Working Pressure, engine must be running during use.
9 percentage duty cycle based on operation at 72 degrees Fahrenheit and 100 PSI
Recommended for use with up to 1 gallon air tank
12 Volt Model
$289.99
24 Volt Model
$299.99
