On this page you will find a wide variety of submersible water pumps.  Typically used in water removal, trash pump solids handling removal, water features, fountains, and more.  We carry a large variety of brands from Munro, EasyPro, MDM, ShinMaywa, Tsurumi, Sequence Centrifugal Pumps, Altantic, Little Giant and More.  Have a special request or need one not shown just ask!


HOW TO CHOOSE A CORRECT PUMP FOR YOUR APPLICATION

We offer some of the best quality submersible pumps in the world. However, that does not mean that every one of our pumps are the best for every situation. It is important to know how to choose not only the correct pump style, but also the correct size pump for your specific application.

There are literally dozens of designs and applications from which to choose. With so many options, how can buyers be sure of purchasing the right industrial pump for the job? The first step is to know all the critical aspects of your application as it relates to the pump.

If you feel an electric submersible pump is the correct pump style for your application, we can move on to a list of some of the criteria for choosing the correct size and model of electric submersible pump:

What is being pumped? A standard DEWATERING pump is designed to pump clean water. These pumps typically have a top discharge with a flow-thru design that allows the water to cool the motor and allow for continuous operation at low water levels. A TRASH pump, however, will have a side discharge and is designed to pump sand, solids, and debris with minimal wear and clogging. DRAINAGE pumps are designed to pump clean water down to ground level for complete drainage of flat surfaces. So, it is important to know...

Is the water clean or will solids be present?

What is the maximum size of solids that need to be pumped?

Are the solids compressible or not? Stringy?

How low do I need to pump down to?

What rate of flow is required for the application (in gallons per minute)?

Submersible water pumps are designed to operate in a specific operating range of how much capacity they will pump while overcoming the total dynamic head pressure (TDH) of the discharge system. This range is charted on a graph, and is referred to as the pump’s performance curve. If a pump is put into a system that it is improperly sized for (performing too far left or right of the curve), you can end up with no flow, or the pump will run unbalanced and cause premature failure.

Where is the water being pumped to? The TDH of a pump system is the total height that a fluid is to be pumped (in feet), taking into account friction loss (measured as an equivalent, in feet) that a volume of water loses from travelling thru a certain size and distance of pipe and fittings. Therefore it’s important to know…

What is the total distance from pump to where the water is being discharged?

What is total vertical height the pump is required to lift the water?

Is there existing piping the pump will connect to? If so, what size is it?

Operation

Do I need the pumps to start/stop automatically based on water level?

Power Requirements

Is the proper voltage available to run the pump?

Do I have a circuit available that can handle the amperage that this pump will draw?

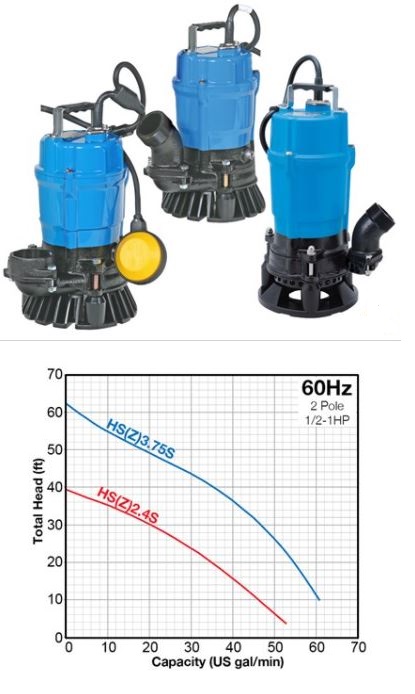

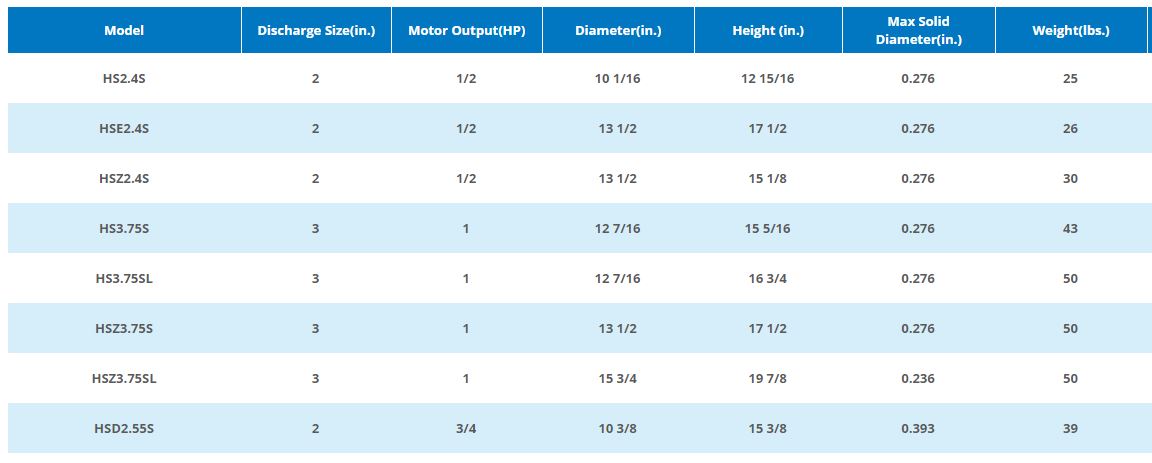

Tsurumi HS SERIES    Model # HS

Durable trash pumps in two sizes—a 1HP & 3-inch discharge and a 1/2HP & 2-inch discharge. Both designed to pump water containing sand, solids and debris with minimal wear and clogging.

These range from $321.00 - $651.00

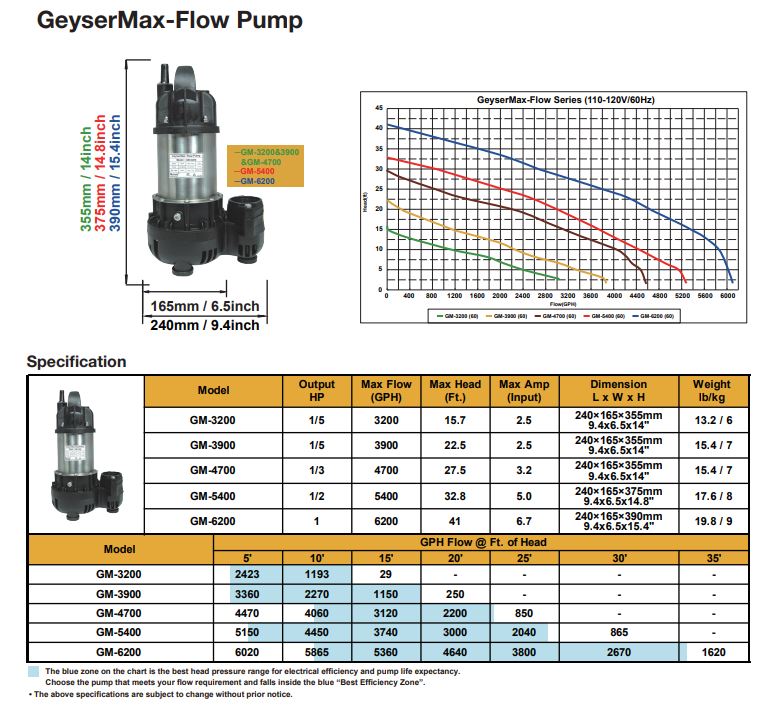

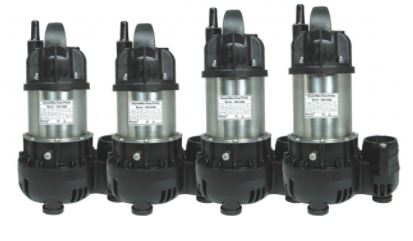

Geyser Max Flow pumps were specially designed with a composite resin base for high performance and low amps.

Applications:

Composite resin base
Low amps
High performance
Corrosion resistant
1-1/2 inch & 2 inch discharge
19 ft. power cord
2 year warranty

                                                                                                    Item #   Description
                                                                GM3200Geyser Max Flow 1/5 hp GM-3200    $319.00
                                                                GM-3900Geyser Max Flow 1/4 HP GM-3900  $339.00
                                                                GM-4700Geyser Max Flow 1/3 HP GM-4700  $385.00
                                                                GM-5400Geyser Max Flow 1/2 HP GM-5400  $429.00
                                                                GM-6200Geyser Max Flow 3/4 HP GM-6200  $495.00


























Versiflow Horizontal Water Pumps

High flow multi purpose "Versatile" Pump

The Versiflow line of pumps are excellent for Heavy and continuous flow duty.

The Versiflow can be installed Vertically or Horizontally, are fully submersible and handle solids like a champ.

Features:

Heavy and continuous duty
Solids Handling
Vertical or horizontal installation.
Submersible
Applications:

To sprinkle or discharge rain water from farmland
For use at relay pump stations or manhole to relay raw water
waterfall, fountain, pond and garden spraying
Sump pit, and waste water handling
                   HP AmpsOutlet        Max     5’ Head10’ Head15’ Head20' HeadMax Head
                                       SIZE    FLOW GPH
VersiFlo32001/52.8        2"        3240       2931    2092        867           N/A            19'
VersiFlo39001/33.2        2"        3850      3648     2748      1428            51            23'
VersiFlo47001/25.3       2"        4690       4256     3538      2707         1789           30'
VersiFlo560017.3           2"        5600       5514     5409      5046         4130           38'

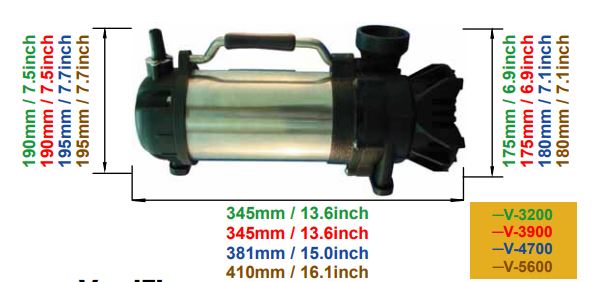

Dimensions:

V-3200 13.5" Long includes Intake Strainer x 5.5" wide x 7" tall at the pipe connection.
V-3900 13.5" Long includes Intake Strainer x 6.5" wide x 7" tall at the pipe connection.
V-4700 15" Long includes Intake Strainer x 6.5" wide x 7" tall at the pipe connection.
V-5600 16" Long includes Intake Strainer x 6.5" wide x 7" tall at the pipe connection.

 V-3200 - 3200 GPH   $354.00
 V-3900 - 3900 GPH   $370.00
 V-4700 - 4700 GPH   $494.00
 V-5600 - 5600 GPH   $713.00

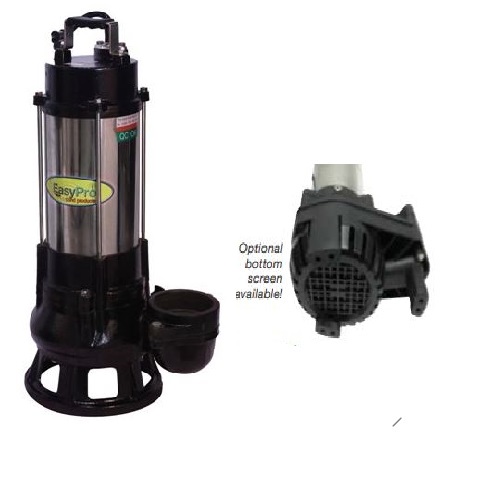

TH Series Stainless Steel Pumps
Energy efficient, long lasting — great pumps for waterfalls and streams
The “TH Series” of pumps have proven to be a great choice for
ponds, waterfalls, fountains and similar applications. Thousands of
these pumps are in use throughout North America in a wide variety
of continuous duty applications. Compact design is ideal for use in
skimmers. One of the industry’s best-selling pumps.
• Rugged motor — designed for long life, continuous duty
operation; motor housing is corrosion-resistant stainless steel
• Low maintenance — pump casing is made from abrasion resistant, fiber reinforced plastic for maximum life
• Vortex design prevents clogging
• Built-in overload and overheat motor protection
• 2" female threaded outlet
• 20' power cords

Part # gph hp Amps/Volts 0' 5' 10' 15' 20' 25' Head Weight Price
TH150 3100 1/4 2.6-3.1/115 52 46 35 23 10 - 23' 19 lbs. $440.99
TH1502 3100 1/4 1.3-1.5/230 52 46 35 23 10 - 23' 19 lbs. $441.29
TH250 4100 1/3 3.0-4.2/115 68 65 54 43 30 15 30' 22 lbs. $540.59
TH2502 4100 1/3 1.5-2.1/230 68 65 54 43 30 15 30' 22 lbs. $540.89
TH400 5100 1/2 3.7-6.0/115 85 83 73 60 46 34 36' 25 lbs. $622.69
TH4002 5100 1/2 1.8-3.0/230 85 83 73 60 46 34 36' 25 lbs. $621.09
TH750 6000 1 6.0-9.9/115 100 98 91 83 73 62 46' 28 lbs. $731.29
TH7502 6000 1 3.0-4.9/230 100 98 91 83 73 62 46' 28 lbs. $722.39
THPS Bottom screen for all sizes of TH pumps (fits 2009 models & newer) - 1 lb. $19.99


ALSO Available with 50' and 100' Length Cords!

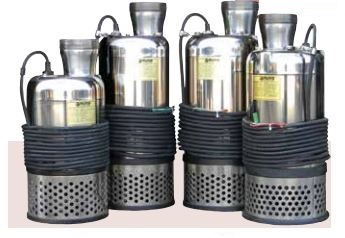

MUNRO PUMPS

Industry leading performance, value & reliability
• Stainless steel pumps designed to run for years, internal water flow dissipates heat quickly allowing for longer life span
• High efficiency motors pump more water using less energy than most competitors
• 1/2 and 1 hp units are low head, high volume pumps — do not restrict piping or valve back these models
• 2 hp and larger are medium head pumps and can be valved
as needed for desired flow
• 24' power cords on 2-5 hp, 30' power cords on 1/2 and 1 hp models

                  Amps/      Outlet   gpm @ feet of head Maximum       Ship
Part #   hp Volts    Diameter 2' 4' 6' 8' 10' 12' Head                Weight Price
MRP05 1/2 8.4/115 3" 185 180 151 139 115 - 10'             55 lbs. $1825.79
MRP10 1 10.4/115 4" 278 255 237 215 192 160 13'         58 lbs. $1970.79
MRP102 1 5.2/230 4" 278 255 237 215 192 160 13'         58 lbs. $1970.79

                      Amps @       Outlet gpm @ feet of head Maximum         Ship
Part #     hp    230 Volts Diameter 15' 20' 30' 40' 50' 60' Head         Weight Price
MRP20    2     9 3"     175 155 125 89 48 - 59'                                 95 lbs. $2172.39
MRP30** 3    13.4 4" 300 276 224 157 100 40 63'                         103 lbs. $2307.19
MRP50** 5*   12.8 4" 360 344 291 238 181 125 84'                       103 lbs. $2696.09
