Rocking Piston Style and Thomas Wob-L® Piston Compressors.
On this page you find the most of the rocking piston pumps we carry. We carry lots of brands from Thomas / Gardner Denver, Gast, GSE International, EasyPro, Kasco Teich Aire, and many more. If you do not see one you need just ask!
Piston pumps can provide higher pressure and flow capabilities than many other pump technologies, in a much smaller package. They cover a wide range of applications due to the breadth of product platforms and performance capability. In most cases these can be used as a compressor or vacuum pump for maximum flexibility and their quiet operation makes them ideal for noise sensitive environments like medical, Air Vending, Pond Aeration, Telephone Cable Drying, Wave Guide Pressurization, Mobile Dental Stations, dental and laboratory applications as well as hundreds of industrial applications. In addition, this pumps rugged motor shell and simple field serviceability extends the life of the product and maximizes uptime.
Pictures are for representation only - actual items may vary in shape, style, size, color, etc.
Unless otherwise stated these come ready to hard wire into a junction box, attach a plug to, or splice onto a power cord. Easily accomplished common hand tools. In most cases Brown is Hot, Blue is Neutral, and Green is Ground. These will come with an intake muffler, capacitor, and fan guards unless otherwise stated. ALL NEW pumps will come with a 1 year warranty.

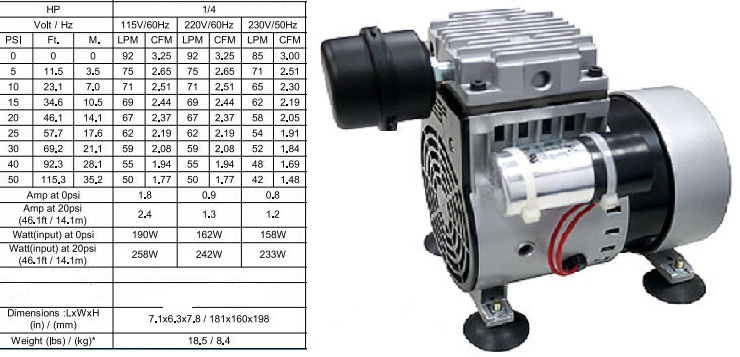

NEW Single Piston Pump w/ Power Cord
Comes with Vibration Feet, filter, and capacitor
Brand: Matala
2 year warranty
Flow Rate (CFM):3.25
Flow Rate (LPM):92
Max Pressure (PSIG):50
Max Vacuum (in HgV):67.8
Max Vacuum (mbar):-942
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
115 V Version BUY IT NOW for $509.99 each.
220V Version BUY IT NOW for $519.99 each.

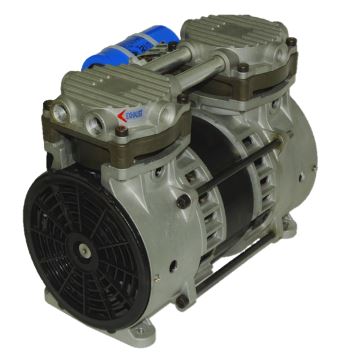

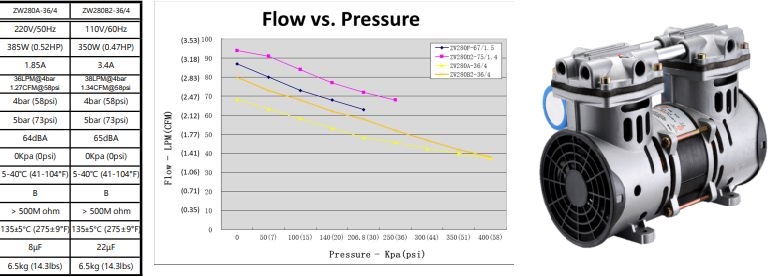

NEW GSE 1/2HP Double Piston Pump
3.3 cfm / 72.5+ psi / Can pull up to 26.6" hg.
Model Number
ZW280
Open Flow94lpm (3.32cfm)
Max Pressure 5bar (72 psi)
Max Vacuum-900mbar (26.6″Hg)
Current at rated load3A
Power at rated load330W (0.44HP)
Motor TypePSC
Voltage/Frequency115V/60Hz
Starting Current11A5A5.55A10A
Net Weight6.5kg (14.3lbs)
220 V Version available Special ORDER** for $340.99

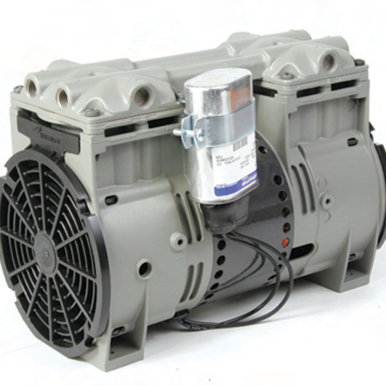

NEW 3/4 hp Thomas Double Piston Pump
Thomas Oil-less WOB-L Piston Compressor
Flow Rate (CFM):3.68
Flow Rate (LPM):105
Max Pressure (PSIG):120
Max Pressure (bar):8.3
Horsepower (60 Hz):.75
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase

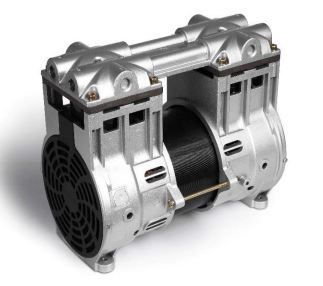

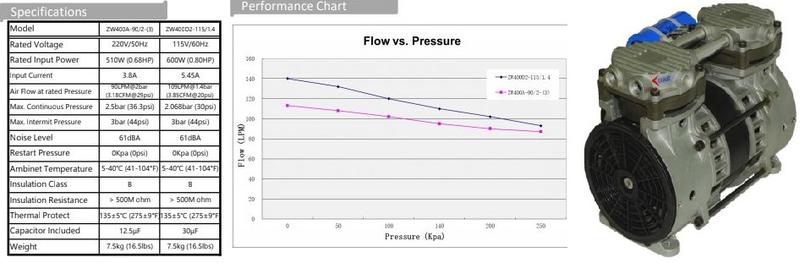

NEW GSE 4.94 CFM Double Piston Pump
Model NumberZW400D2-115/1.4ZW400A-90/2-(3)
Open Flow140lpm(4.94cfm)115lpm(4.06cfm)
Max Pressure (Cont.)2.068bar(30psi)2.5bar(36.3psi)
Max Vacuum-900mbar(26.6″Hg)-840mbar(24.8”Hg)
Current at rated load5.45A3.8A
Power at rated load600W(0.80HP)510W(0.68HP)
Motor TypePSCPSC
Voltage/Frequency115V/60Hz220V/50Hz
Starting Current19A7A
Net Weight7.5kg(16.5lbs)7.5kg(16.5lbs)

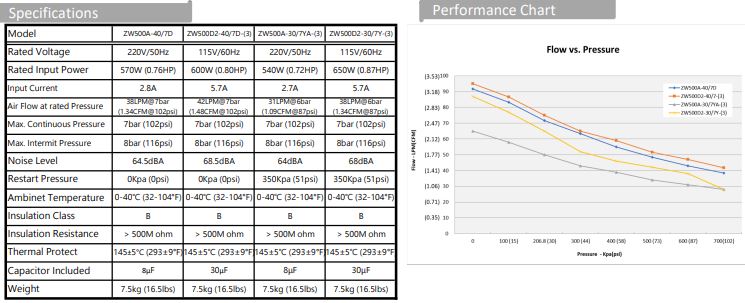

NEW GSE Double Piston 3/4HP PUMP
Model # ZW500B2
Open Flow 87lpm (3.06cfm)
Max Pressure (Cont.) 7bar (102psi)
Max Vacuum -800mbar (23.6”Hg)
Current at rated load 5.7A
Power at rated load 650W (0.87HP)
Motor Type PSC
Voltage/Frequency220V/50Hz 115V/60Hz
Starting Current6.1A 17A
Net Weight 7.5kg (16.5lbs)
115 V BUY IT NOW for $395.99 each

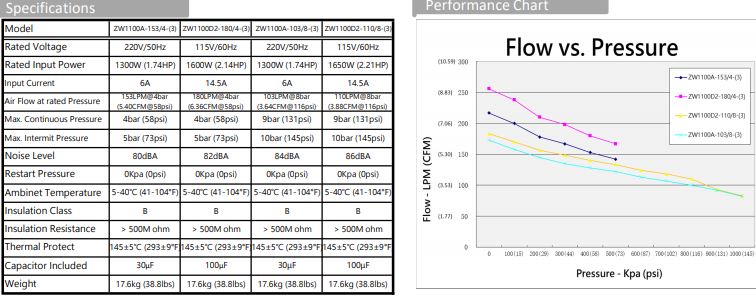

NEW GSE Double Piston
2.14 HP HIGH CFM PUMP
Model Number ZW1100D2-180/4-(3)
Open Flow 256lpm (9.04cfm)
Max Pressure (Cont.) 4bar (58psi)
Max Vacuum- -880mbar (26”Hg)
Current at rated load 14.7A
Power at rated load 1600W (2.14HP)
Motor Type PSC
Voltage/Frequency 115V/60Hz
Starting Current 42A
Net Weight 17.6kg (38.8lbs)

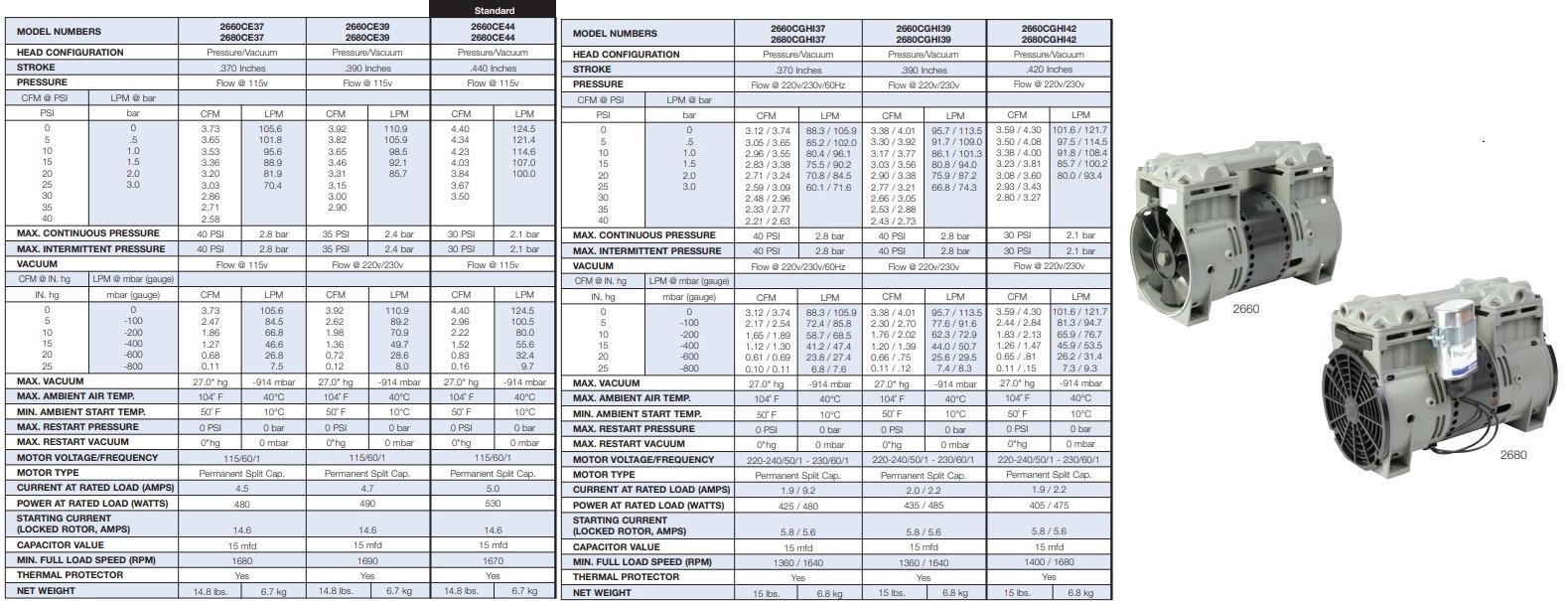

NEW Thomas HIGH CFM Compressor / Vacuum Pump
115V models come with a factory installed Power Cord.
220v models typically have a lead time to ship -
- contact us for lead times
MODEL # 2680CE44
Flow Rate (CFM):4.4
Flow Rate (LPM):125
Max Pressure (PSIG):30
Max Pressure (bar):2
Max Vacuum (in HgV):27
Max Vacuum (mbar):-915
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
115V Version 2680CE44 BUY IT NOW for $789.99 each.
220V Version 2680CGHI42 *lead Times apply* BUY IT NOW for $895.99 each.

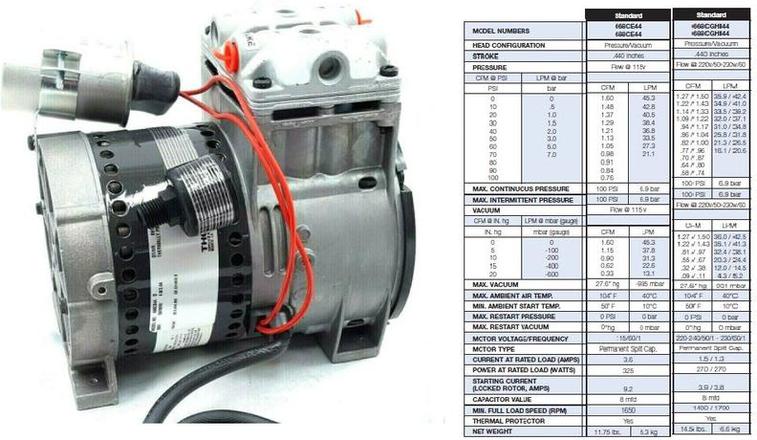

Thomas 1/3 HP Single Piston Compressor / Vacuum Pump With 6' CORD.
Thomas Oil-less WOB-L Piston Compressor / Vacuum Pump
Brand:Thomas
Flow Rate (CFM):1.6
Flow Rate (LPM):46
Max Pressure (PSIG):100
Max Pressure (bar):6.9
Max Vacuum (in HgV):27.8
Max Vacuum (mbar):-942
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
115v Version 688CE44 BUY IT NOW for $719.99
220v Version 688CGHI44 BUY IT NOW for $785.99

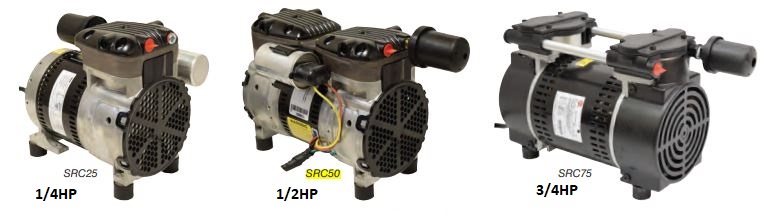

Gast 2021 87R Models Rocking Piston Compressors
Stratus series “Gen 2” rocking piston compressors are specifically designed
for the demanding job of 24 hour operation.
Flows from 2 cfm to 6.5 cfm and up to 29" HG
Features
• Universal dual voltage motor
• Oil-less operation
• Permanently lubricated bearings
• Includes Stratus Smart-Start technology to start under load
• Superior quality, flexible cup material for increased reliability
• Die-cast body components for overall strength
• Single or double cylinder design
• Inlet/Outlet Size: 1/4" fpt
• RPM: 1725 60Hz
• Maximum 30 psi
Units include
• Air inlet filter
• Rubber feet
• 5' power cord
Amps* Cost per Cfm Air Flow @ Water Depth of:
Part # hp /Volts 24 Hours** 0' 10' 20' 30' 40' 50' Ship Weight Price
87RSRC25 1/4 1.7/115 $0.40 2.3 2.2 2.0 1.9 1.8 1.7 17 lbs. $593.99
87RSRC252 1/4 0.9/230 $0.40 2.3 2.2 2.0 1.9 1.8 1.7 17 lbs. $593.99
87RSRC50 1/2 3.6/115 $0.86 4.5 4.3 4.2 4.0 3.8 3.6 22 lbs. $739.99
87RSRC502 1/2 1.8/230 $0.86 4.5 4.3 4.2 4.0 3.8 3.6 22 lbs. $739.99
87RSRC75 3/4 4.5/115 $1.10 6.5 6.0 5.5 5.2 5.0 4.7 26 lbs. $899.99
87RSRC752 3/4 2.3/230 $1.10 6.5 6.0 5.5 5.2 5.0 4.7 26 lbs. $899.99
Air Inflation Compressor For Tire / Coin Operated Air machines @ Gas Stations, Air vending equipment.
Compressor replacement for Air machines at gas stations - or you these are perfect for a tire inflation system at home - 110 PSI Max, auto restart under pressure, These will replace Most Any Pump at any gas station air and water machines. Perfect replacement for the coin operated compressor. The NEW Pump is a brand NEW 3/4 HP Model and comes w/ an air filter/capacitor/ & fan guards.

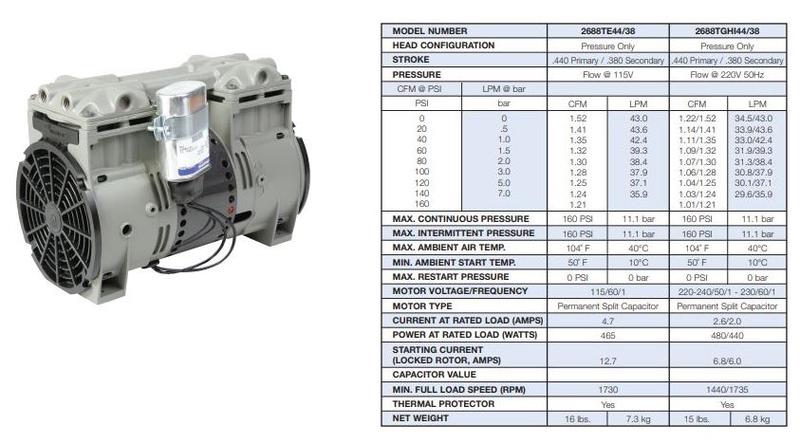

NEW 160 PSI Thomas Piston Compressor
Flow Rate (CFM):1.52
Flow Rate (LPM):43
Max Pressure (PSIG):160
Max Pressure (bar):11
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
MODELS
2688TE44/38 115 V BUY THIS NOW for $1080.55
2688TGHI44/38 220 V BUY THIS NOW for $1199.99

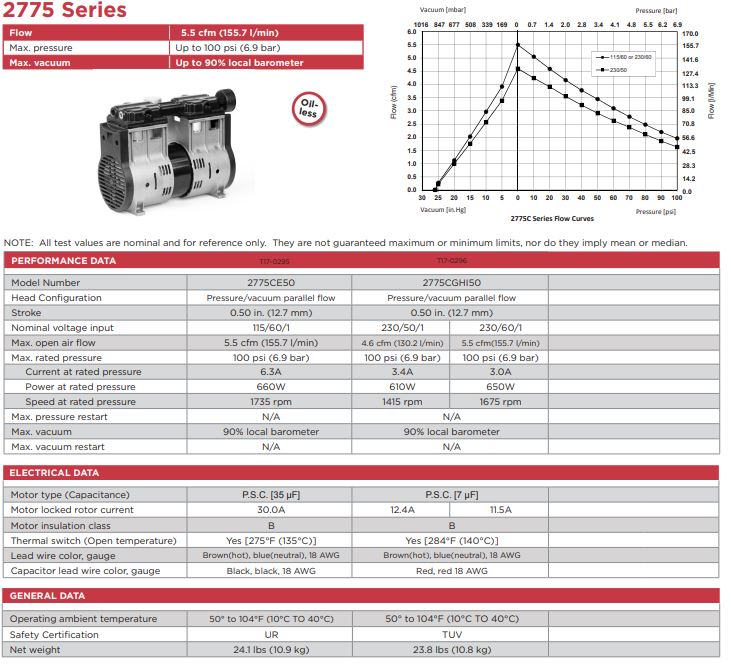

NEW Thomas 2775 Series Oil-less
WOB-L Piston Compressor / Vacuum Pump
Brand:Thomas
Flow Rate (CFM):5.5
Flow Rate (LPM):155.7
Max Pressure (PSIG):100
Max Pressure (bar):6.9
Max Vacuum (in HgV):26.9
Max Vacuum (mbar):-911
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
Item Length (In):11.73
Item Width (In):6.1
Item Height (In):9.8
Item Length (mm):297.94
Item Width (mm):154.9
Item Height (mm):248.92
Net Weight (Lbs):24.1
Net Weight (Kg):10.9
2775CE50 115V version BUY THIS NOW for $1899.88
2775CGHI50 220 V Version BUY THIS NOW for $1855.99
NEW Thomas 1 HP WOB-L® piston pumps & compressors
DISCONTINUED - NO Longer Available - Call or email for compatible replacement

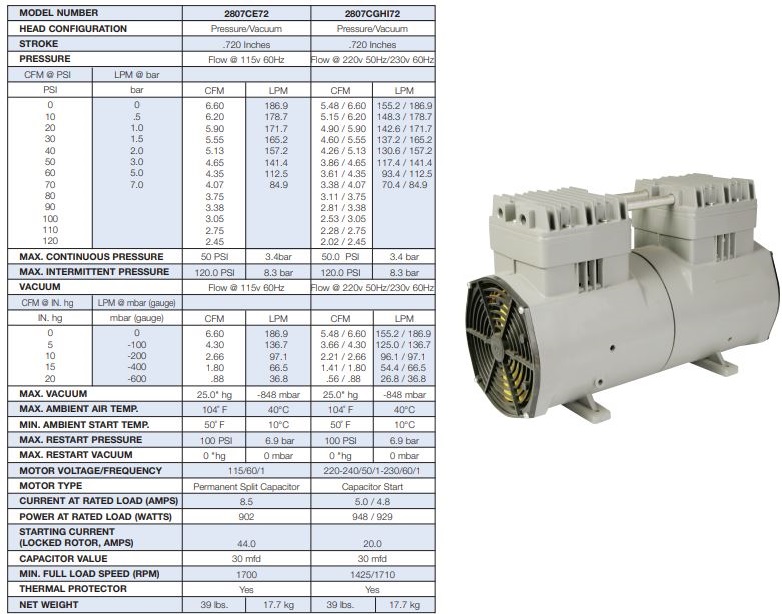

2807 Series
2807CE72
2807CGHI72
Capacity up to 6.60 cfm /186.98 l/min
Vacuum to 25.0 in.Hg / -848 mbar
Pressure to 120 psi / 8.28 bar
Flow Rate (CFM):6.6
Flow Rate (LPM):187
Max Pressure (PSIG):50
Max Pressure (bar):3.4
Max Vacuum (in HgV):25
Max Vacuum (mbar):-847
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
Item Length (In):15.6
Item Width (In):7.31
Item Height (In):10.05
Item Length (mm):396
Item Width (mm):186
Item Height (mm):255
Net Weight (Lbs):39
Net Weight (Kg):17.7
NEW Thomas WOB-L® piston pumps & compressors
2755 Series
Flow 7.5 cfm(212.4 l/min))
Max. vacuum 29.0 in.Hg (-980 mbar)
Max.pressure 175 psi (12.1 bar)
2755CE60 (115/60/1)
2755CGHI60 (230/601/1 & 220-240/50/1)
2755C Specs:
Flow Rate (CFM):6.5
Flow Rate (LPM):184
Max Pressure (PSIG):15
Max Pressure (bar):1
Max Vacuum (in HgV):27.2
Max Vacuum (mbar):-921
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
Item Length (In):10.35
Item Width (In):5.37
Item Height (In):9.32
Item Length (mm):262.89
Item Width (mm):136.4
Item Height (mm):236.73
Net Weight (Lbs):21.5
Net Weight (Kg):9.8
2755TE48/40 (115/601/1)
2755TGHI52/48 (230/60/1 & 220-240/50/1)
2755T Specs:
Flow Rate (CFM):2.6
Flow Rate (LPM):73.6
Max Pressure (PSIG):160
Max Pressure (bar):11
Voltage (60 Hz):115
Frequency (Hz):60
Phase:1-phase
Number of Stages:2
Item Length (In):10.35
Item Width (In):5.37
Item Height (In):9.32
Item Length (mm):262.89
Item Width (mm):136.4
Item Height (mm):236.73
Net Weight (Lbs):21.7
Net Weight (Kg):9.8
2755CE60 (115/60/1) BUY THIS NOW for $1799.99
2755CGHI60 (230/601/1 & 220-240/50/1) BUY THIS NOW for $1899.99
2755TE48/40 (115/601/1) BUY THIS NOW for $1389.00
2755TGHI52/48 (230/60/1 & 220-240/50/1) BUY THIS NOW for $1389.99

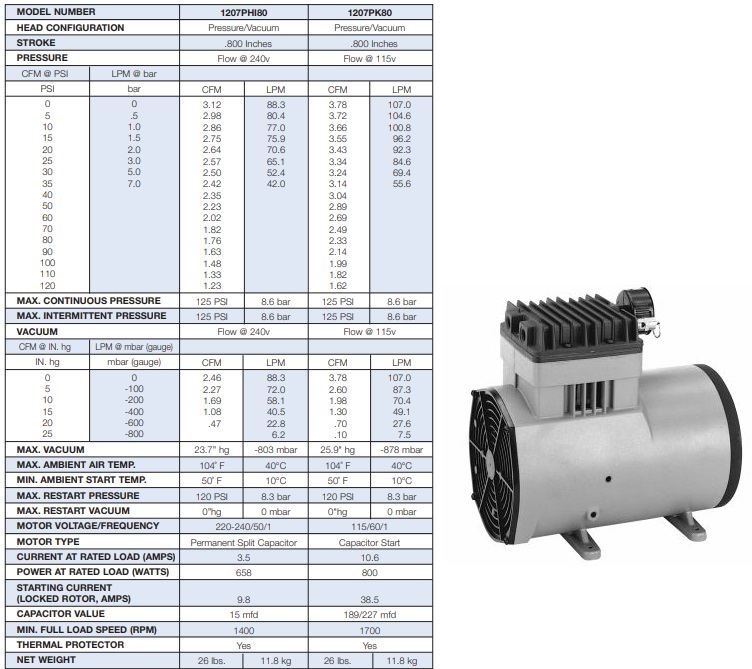

Thomas 1207 Series WOB-L® piston pumps & compressors
DISCONTINUED - NO Longer Available - Call or email for compatible replacement
Commonly used in Air Vending Machines & Air Sampling Equipment
Capacity up to 3.8 cfm / 107 l/min
Vacuum to 25.9 in.Hg / -878 mbar
Pressure to 125 psi / 8.6 bar
Flow Rate (CFM):3.78
Flow Rate (LPM):107
Max Pressure (PSIG):125
Max Pressure (bar):8.6
Voltage (60 Hz):115
Item Length (In):10.7
Item Width (In):6.53
Item Height (In):10.02
Item Length (mm):272
Item Width (mm):166
Item Height (mm):255
Net Weight (Lbs):26
Net Weight (Kg):11.8

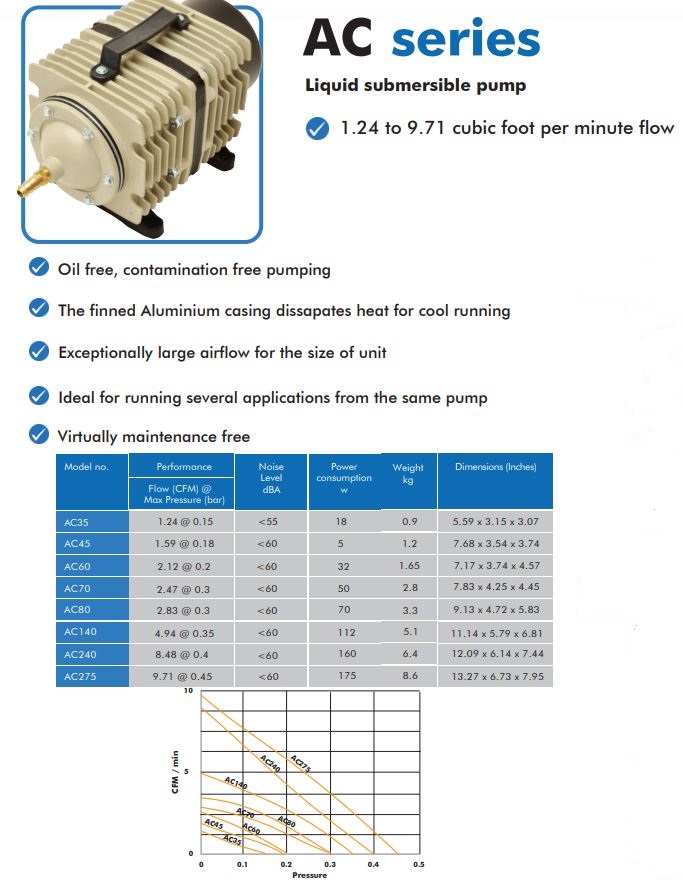

THE AC PISTON SERIES AIR PUMPS FOR AQUATIC AND HYDROPONIC APPLICATIONS
The AC piston range of air compressors is suitable for applications where high pressure is required to provide a continuous supply of oil-free air. Used in conjunction with air stones or diffusers, they are suitable for the aeration of larger hydroponic growing systems or aquatic tanks.
The AC series pumps are an ideal pump for hydroponic and aquatic systems; although small in size its exceptionally large airflow allows the running of several applications. Designed with a finned aluminum casing, the AC series dissipates heat for cool running, making it virtually maintenance free.
BUY THESE NOW below:
