Below you will find a wide variety of Rotary Vane Vacuum Pumps and Compressors.
We carry these in a few brands but mainly Thomas, Gast, and EasyPro ( Private Labelled Gast brand ).
Rotary vane pumps are often the first choice for vacuum handling and gas sampling applications that require a high flow capability relative to the size of the pump.
Rotary vane technology features low pulsation and low vibration, which enable consistent flow rates with minimal vibration. These traits make these units ideal for Medical, Lab Life Science devices, life-saving equipment, and Industrial, Environmental, and Food & Beverage markets.
A rotary vane pump is a positive-displacement pump that consists of vanes mounted to a rotor that rotates inside a cavity. In some cases these vanes can have variable length and/or be tensioned to maintain contact with the walls as the pump rotates.

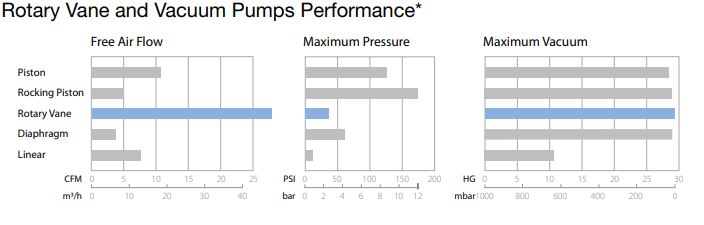

Rotary Vane vacuum pumps and compressors have certain significant advantages. In addition to providing smooth, pulse-free air flow without receiver tanks, they are compact (or equivalently offer high flow capacities for a given size), are simple and economical to install and operate, have low starting and running torque requirements, produce minimal noise
or vibrations, are capable of long, service-free life, and are easily serviced. If these features are what you need in your pneumatic application, a Rotary Vane model can provide you the right
solution.
Energy Efficient. Operation is based upon the principles of electromagnetic oscillation. It eliminates the need for sliding parts, minimizing power consumption. Clean Air Because there are no sliding parts there is no need for lubrication. An added advantage: the exhausted air is always clean and particle-free. Smooth Flow Uniform exhaust rate and minimal pulsation make
the Linear products ideal for applications requiring consistent air pressure and supply.
Rotary Vane Pumps by Thomas
Thomas rotary vane pumps and compressors provide a free flow ranging from 1.2 l/min (0.04 cfm) up to 198.0 l/min (7.0 cfm), with maximum continuous operating vacuum up to 930 mbar (27.5 in.Hg), and maximum continuous operating pressures up to 1 bar (14.5 psi). NOT Recommended for Humid environments

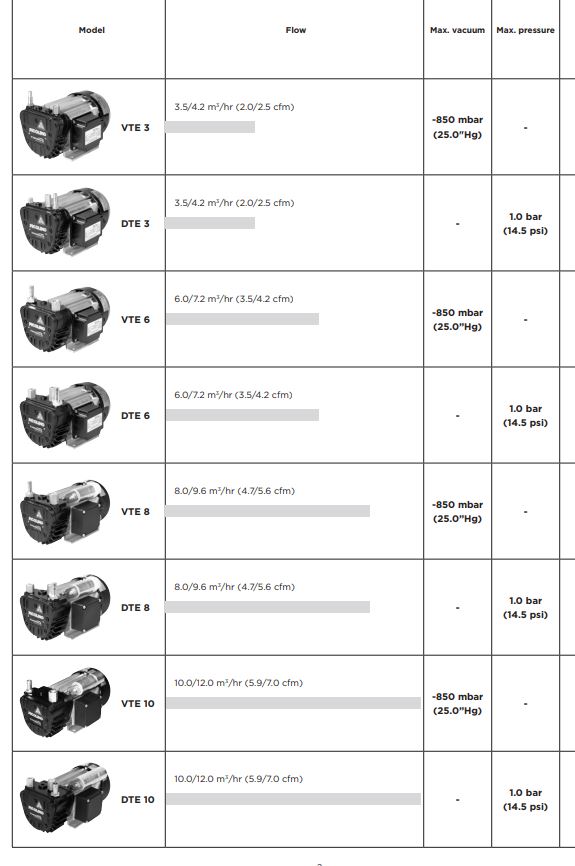

NEW Thomas Rotary vane pumps & compressors

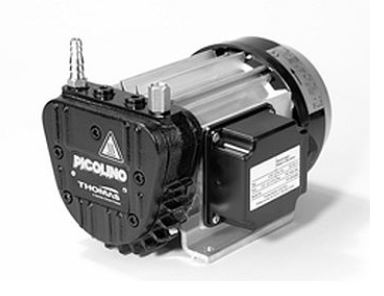

PICOLINO VTE Series Vacuum**
Flow rate from 2.0 to 5.9 cfm / 58 to 170 l/min at 50 Hz and 2.5 to 7.0 cfm / 70 to 198 l/min at 60 Hz
Vacuum level 25.0 in.Hg / -850 mbar
High flow to size ratio
Virtually pulsation free
Precise / stable flow output
Very low sound / vibration levels
Easily serviced integral intake filter
Rugged, lightweight, compact design
Corrosion resistant exterior
IP54 (AC) IP55 (DC) protection class
UL, CE Agency listed products
RoHS / REACH compliant
Service kits / accessories available
Typically used in:
Vacuum lifting
Automation/Pick and Place
Medical Printing
Air & gas sampling/analyzing
Anaerobic cell culture systems
Centrifuge Core drill hold down
Flue gas analyzers
Food & beverage packaging/processing equipment
Lab automation/instrumentation equipment
Medical endoscopy
Particle & gas emission monitoring
Printing and collating equipment
Respiratory mask filtration test equipment
Ultrasonic welder film feeder
Vacuum clamping/handling/hold
down/lifting/pick and place

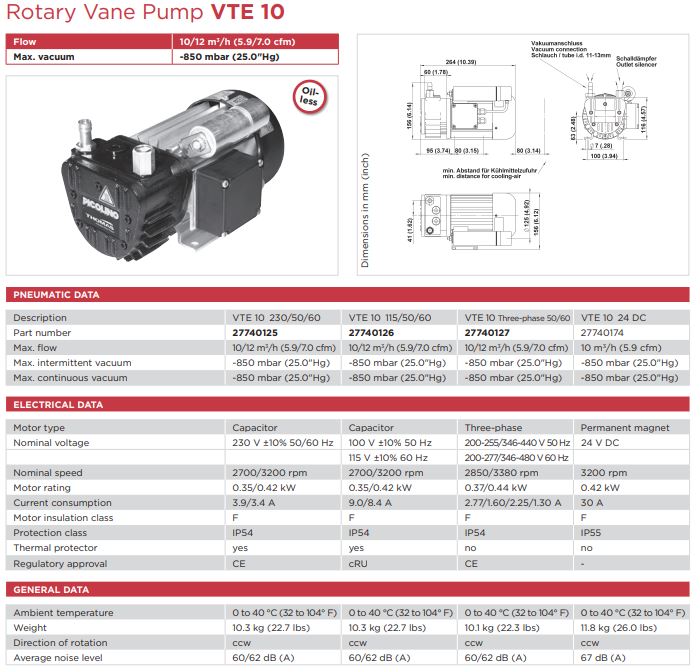

VTE10 Series
Model # 27740126
To purchase all other models please contact us for pricing and availability.
VTE6 Series
Model # 25160120
To purchase all other VTE6 models please
contact us for pricing and availability.
Rotary vane pumps & compressors
PICOLINO DTE Series **Compressor models
Flow rate from 2.0 to 5.9 cfm / 58 to 167 l/min at 50 Hz and 2.5 to 7.0 cfm / 70 to 200 l/min at 60 Hz Pressure up to 14.5 psi / 1.0 bar

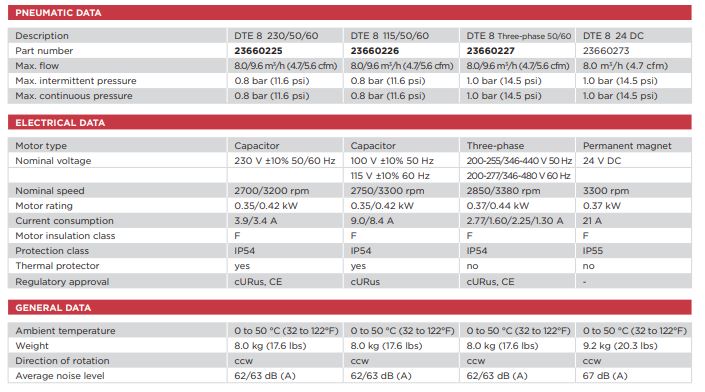

DTE8 Series
Model # 23660226
For all other models listed please contact
us for pricing and availability

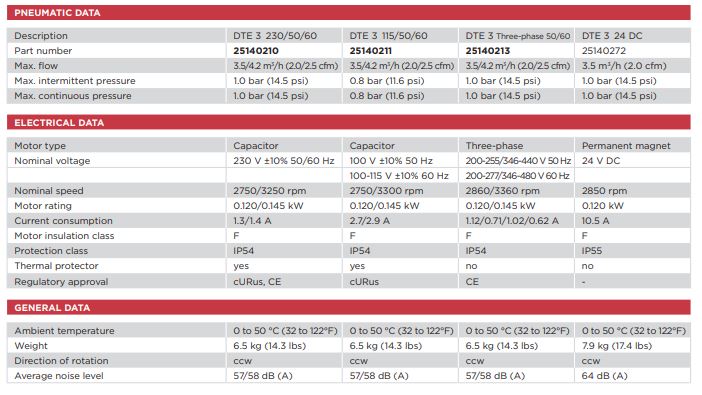

DTE3 Series
Model # 25140211
For all other models listed please contact
us for pricing and availability

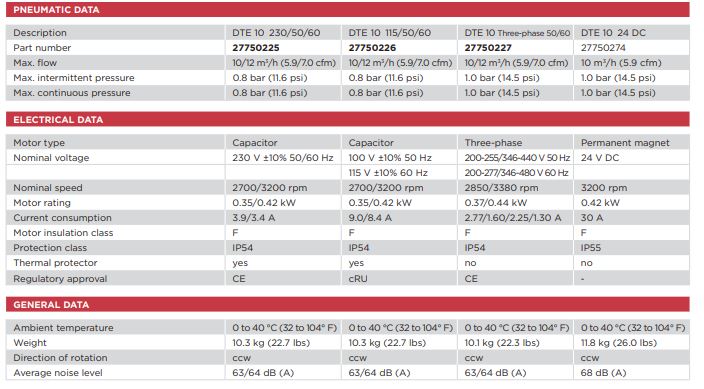

DTE10 Series
Model # 27750226
For all other models listed please contact
us for pricing and availability
Other Thomas Models available are
to the left with listed specs
Contact us to request pricing
and availability on those
not listed above.
Gast Rotary Vane Compressors
The specifications listed are that of a unit at sea level with an ambient temperature of 70°F (21°C), operating with normal electrical current conditions. The figures stated in this catalog are nominal approximations for models without accessories. Intake filters and exhaust mufflers, and the accumulation of contaminants in them during operation, will decrease the flow of air as well as the achievable pressure.The Gast units that we list below are a small portion of what are available. Those listed are considered “standard units” and are normally available from stock in small quantities. Variations are produced for many customers and by passing on to us the application specifications we might find an existing unit that fits your requirement. If we don’t and the quantity is sufficient, we will design a “special unit” for the application.
Pictorial and dimensional data is subject to change without notice.
The information presented in this catalog is based on technical data and test results of nominal units. It is believed
to be accurate and is offered as an aid in the selection of Gast products. It is the user’s responsibility to determine
suitability of the product for intended use and the user assumes all risk and liability whatsoever in connection
therewith.
Rotary Vane Compressors
• Long lasting, continuous duty compressors offer less depth capabilities than the diaphragm or
rocking piston compressors but produce considerably more air per HP
• Medium pressure, oil free compressors are excellent for pond and lake aeration or de-icing and other applications.
• Carbon vanes self adjust to maintain maximum efficiency and are easily replaced when worn out
• All models have an 18' maximum operating depth
• Units include air filter and 6' power cord with plug
• • Units available in 115 or 230 volt
• One year warranty
SRV33 models can produce 4 CFM @ 10 PSI and 22" HG
SRV75 models can produce up to 10 cfm @ 10 PSI and 22" HG
SRV100 models can produce up to 13 cfm @ 10 PSI and 27" HG
Part # Description Volts Amps Weight Buy it now Price
SRV33 1/4 hp rotary vane 115 5 34 lbs. $875.99
SRV332 1/4 hp rotary vane 230 2.5 34 lbs. $875.99
SRV75 3/4 hp rotary vane 115 12 53 lbs. $1139.99
SRV752 3/4 hp rotary vane 230 6 53 lbs. $1139.99
SRV100 1 hp rotary vane 115 14 58 lbs. $1529.99
SRV1002 1 hp rotary vane 230 7 58 lbs. $1529.99
The easy to install, rugged pumps allows for higher vacuum levels and provides better internal corrosion protection and longer life. Their internal sound suppression results in lower operating noise levels, which makes them well suited for noise sensitive environments like medical, dental and laboratory applications. In addition, these compact units offer high flow, pulse free air– making them ideal for applications requiring consistent air pressure and air flow.
For models not listed please contact us for pricing and availability.

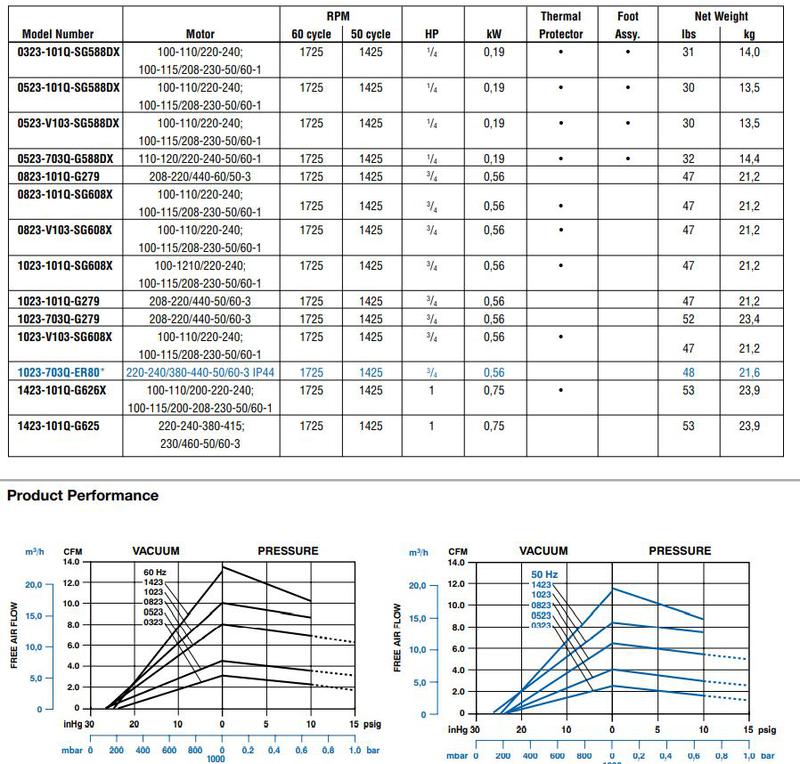

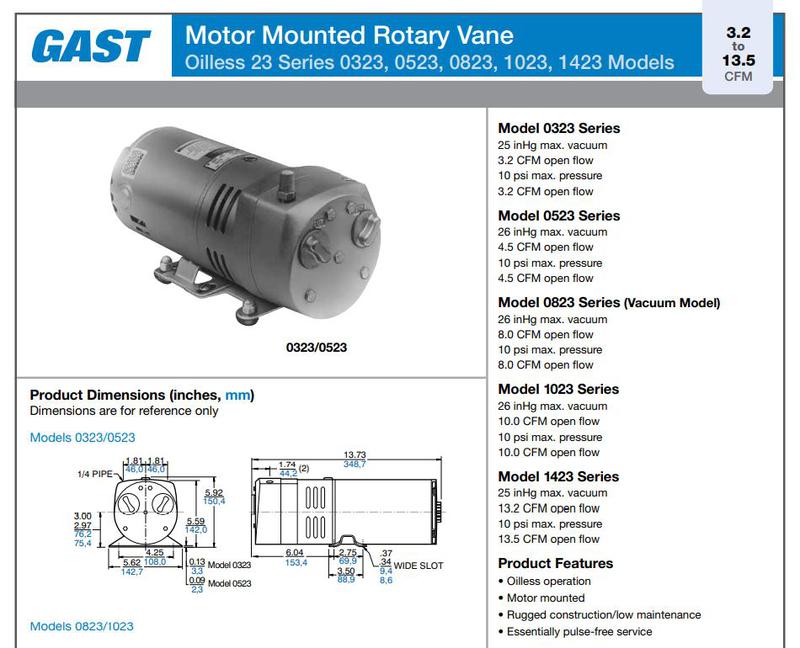

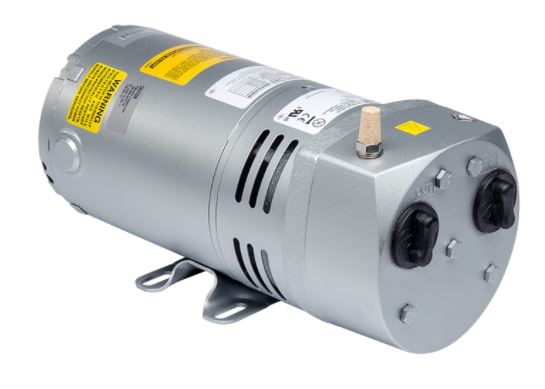

MODEL # 0523-101Q-G588NDX
SPECIFICATIONS
Thermal Protection: YES
Operating Voltage: 110/220-240; 115/220-230
Regulatory Approval: cUR, CSA, CE
Flow @ 50hz: 4 cfm ( 6.8 m3h )
Flow @ 60hz: 4.5 cfm ( 7.65 m3h )
Max Pressure: 10 psi ( 0.69 bar )
Max Pressure @ 50hz: 10 psi ( 0.69 bar )
Max Pressure @ 60hz: 10 psi ( 0.69 bar )
Weight: 32 lbs ( 14.51 kg )
Duty Cycle: 100%
Warranty: 1 Year
MODEL # 1023-101Q-G608NEX
SPECIFICATIONS
Thermal Protection: YES
Operating Voltage: 100-110/220-240; 100-115/208-230
Regulatory Approval: cURus, CE
Vanes: 4
Flow @ 50hz: 8.5 cfm ( 14.44 m3h )
Flow @ 60hz: 10 cfm ( 16.99 m3h )
Max Pressure: 10 psi ( 0.69 bar )
Max Pressure @ 50hz: 10 psi ( 0.69 bar )
Max Pressure @ 60hz: 10 psi ( 0.69 bar )
Weight: 47 lbs ( 21.32 kg )
Duty Cycle: 100%
Warranty: 1 Year
Model # 1423-101Q-G626X
SPECIFICATIONS
Thermal Protection: YES
Operating Voltage: 100-110/200-240;100-115/208-230
Regulatory Approval: cUR, CE
Vanes: 4
Power Rating: 1 hp ( 0.75 kW )
Power Rating @ 50hz: 1 hp ( 0.75 kW )
Power Rating @ 60hz: 1 hp ( 0.75 kW )
Flow @ 50hz: 11.5 cfm ( 19.54 m3h )
Flow @ 60hz: 13 cfm ( 22.09 m3h )
Max Pressure: 10 psi ( 0.69 bar )
Max Pressure @ 50hz: 10 psi ( 0.69 bar )
Max Pressure @ 60hz: 10 psi ( 0.69 bar )
Weight: 54.5 lbs ( 24.72 kg )
Duty Cycle: 100%
Warranty: 1 Year
